• Model: 90MB1J30-M0EAY0
• Chipset: AMD X670E
• Socket: AM5
• Max Memory: 192GB
• Clock Speeds: 8000 MHz
TUF Gaming:
ASUS TUF GAMING B850-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
AI Advisor:
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
(* Availability of ASUS AI Advisor may vary by region). (**AI Advisor functions may vary by platform).
Premium Power Design:

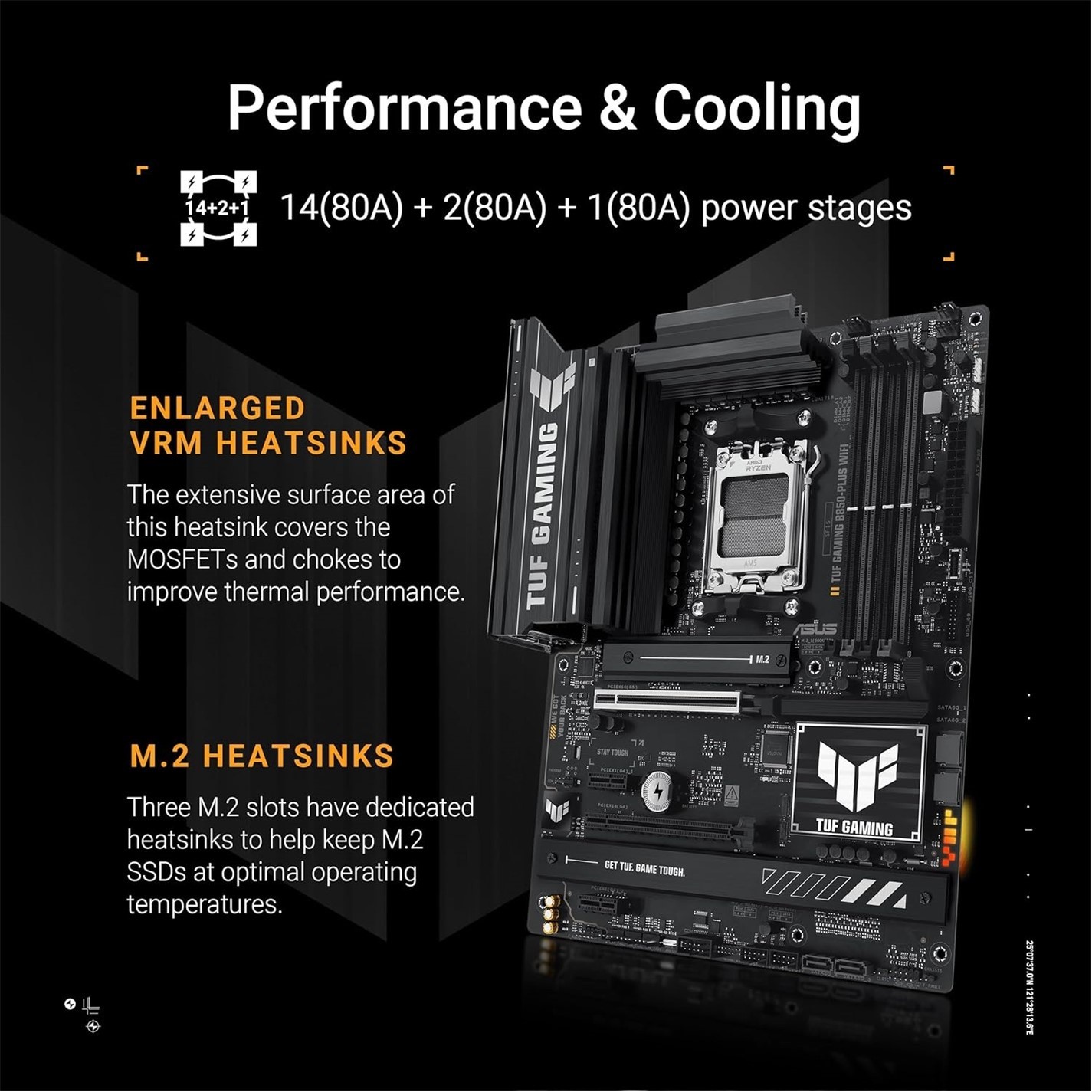

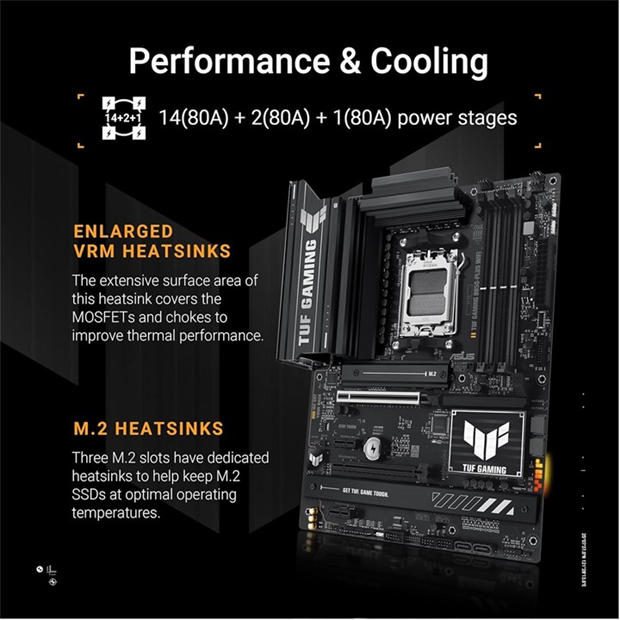

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
DRAM Overclocking Performance:
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. (* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information).
DDR5 DOMINANCE:
For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
M.2 PCIe 5.0 Support:
This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds. (* Actual transmission speed will be lower than theoretical maximum speed).
PCIe Slot Q-Release:
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
Specification
- Model Number: 90MB1J30-M0EAY0
- EAN: 04711387781609
Processor Socket: Socket AM5
RAM Memory Technology: DDR5
Compatible Processors: AMD Ryzen 9000, AMD Ryzen 8000, AMD Ryzen 7000
Chipset Type: AMD X670E
Memory Clock Speed: 8000 MHz
Platform Windows: 11
CPU Model: AMD Ryzen 7
Memory Storage Capacity: 192 GB
Ram Memory Maximum Size: 256 GB
Main Power Connector Type: 24-Pin
Graphics Card Interface: PCI-Express x16
Available Memory Slots: 4
Number of Ports: 35
System Bus Standard Supported: SATA 3
Total USB Ports: 17
Number of Ethernet Ports: 1
Total PCIe Ports: 1
