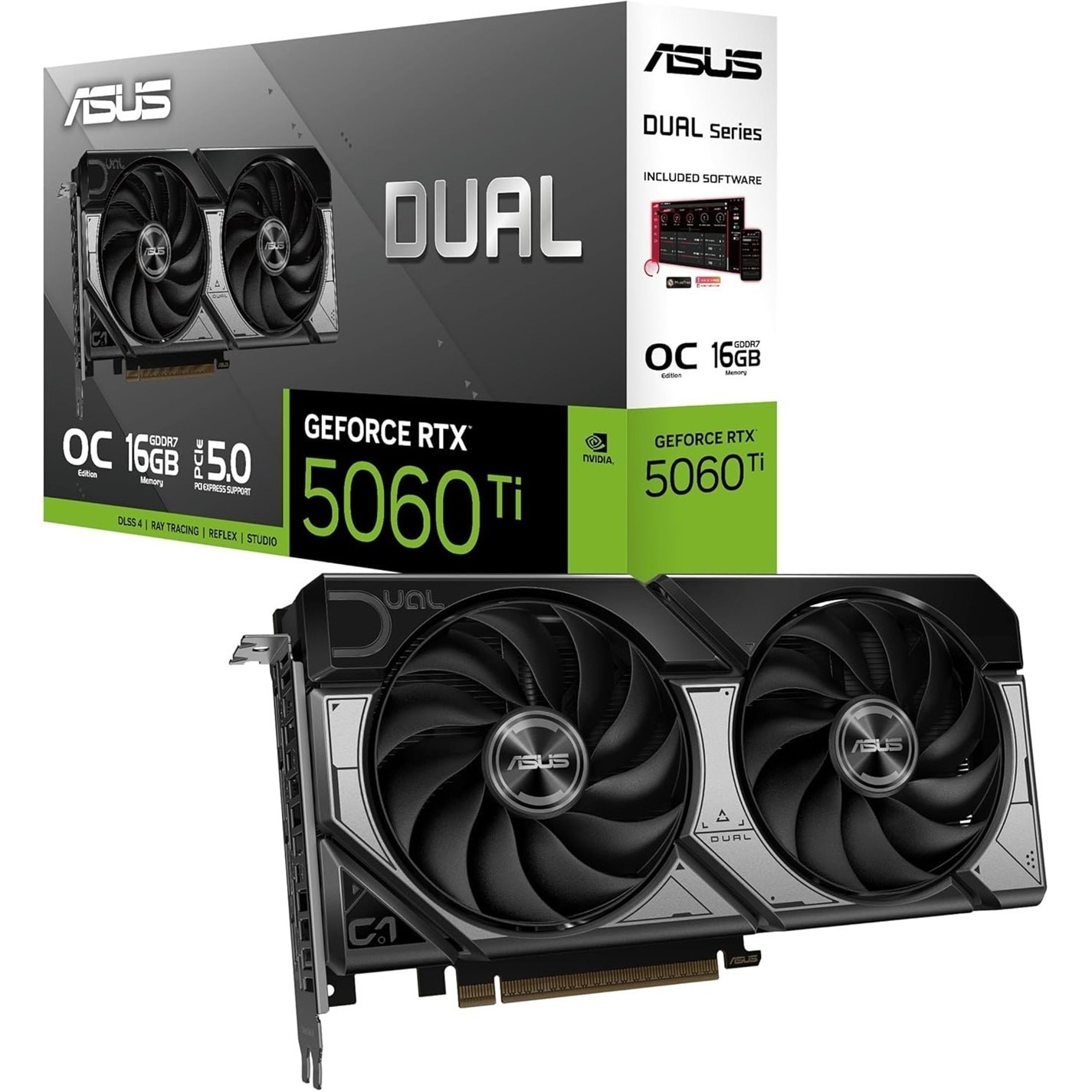

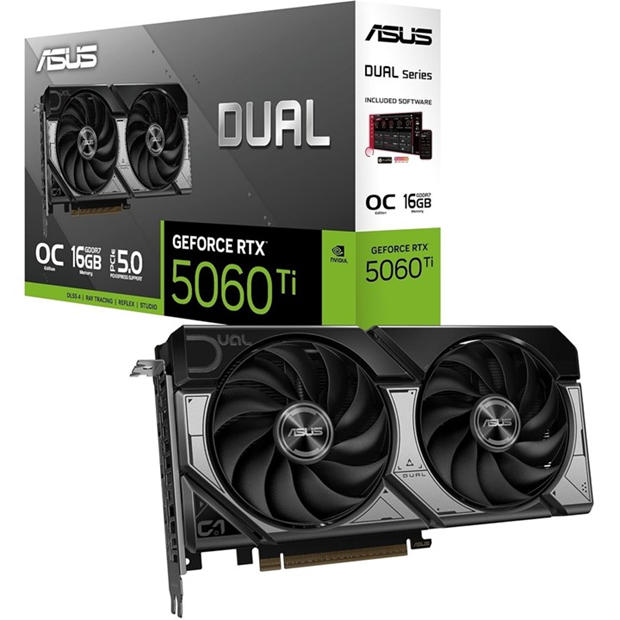

• Model: NVIDIA GeForece RTX 5060 Ti
• VRAM: 16GB GDDR7
• Clock Speed: 2602 MHz| 2632 MHz Boost
• Outputs: 1x HDMI, 3x DisplayPort
• Cooling: Dual Fan

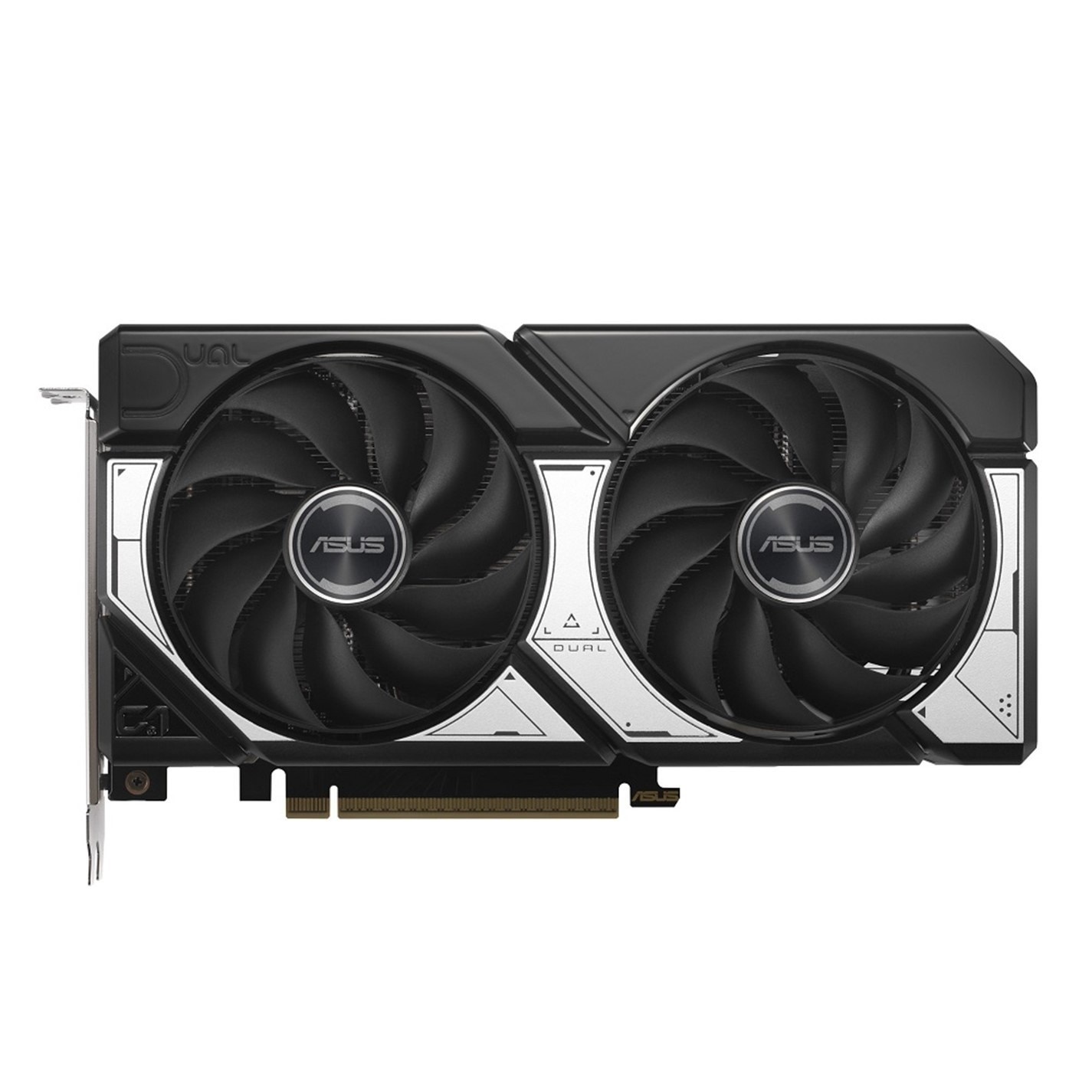

Dual fans, perfect fitASUS Dual GeForce RTX™ 5060 Ti combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
NVIDIA Blackwell ArchitectureThe Ultimate Platform for Gamers and Creators, Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4, New Streaming Multiprocessors - Optimized for neural shaders, Fourth-Gen Ray Tracing Cores - Built for Mega Geometry

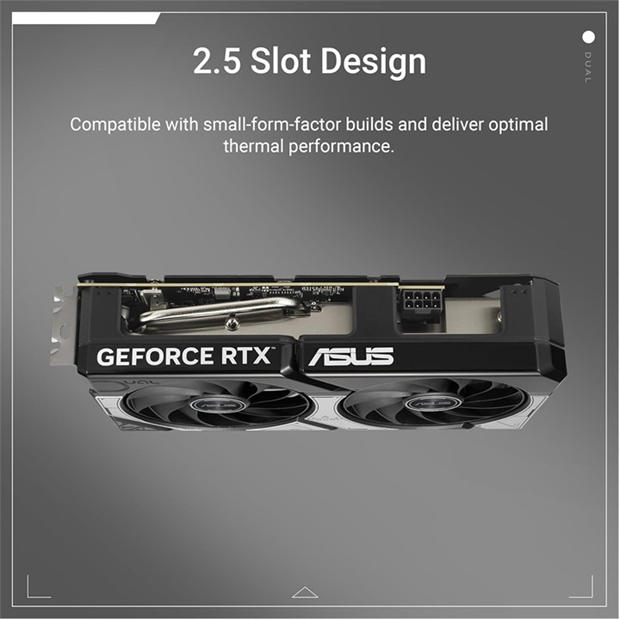

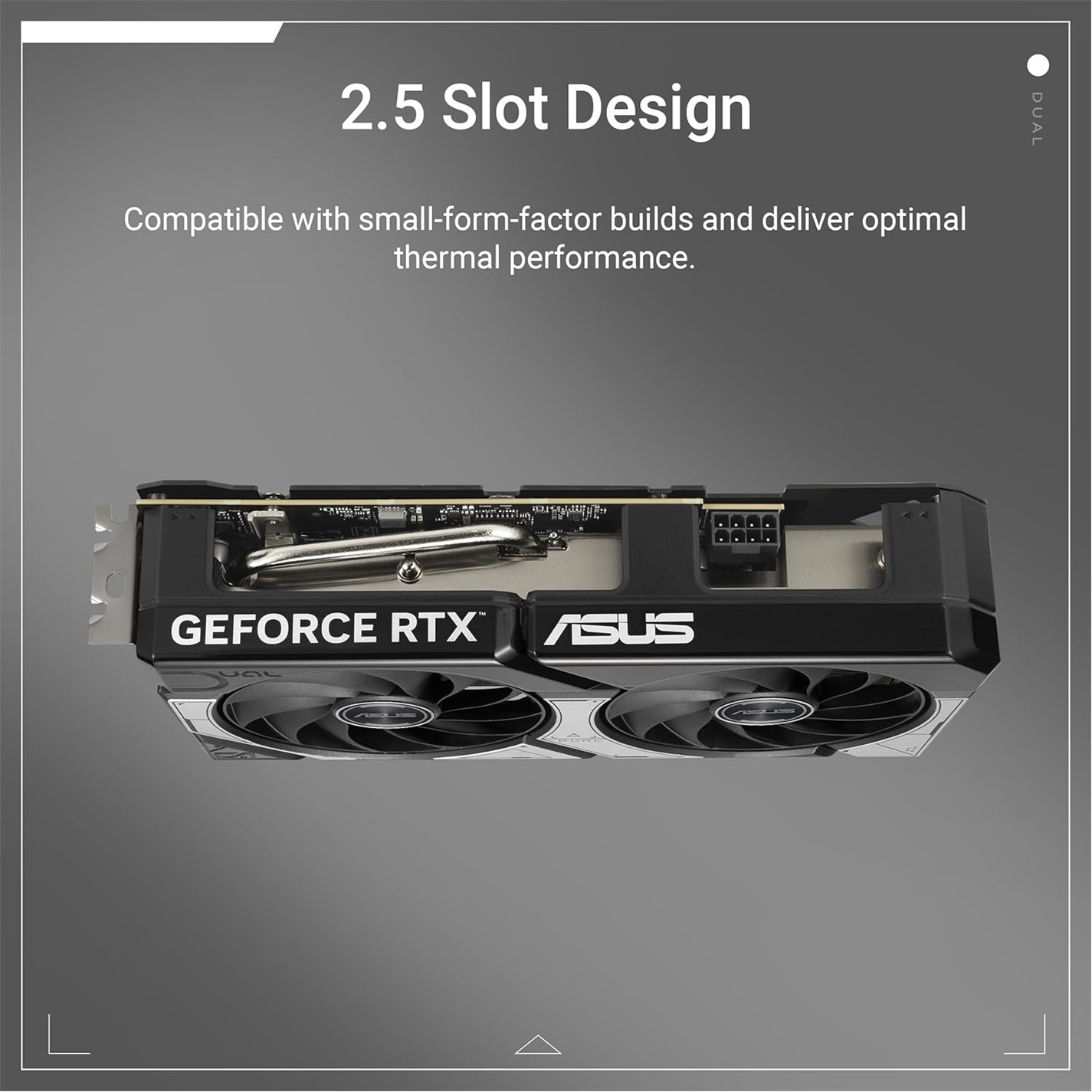

Build Small. Play Bigou can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

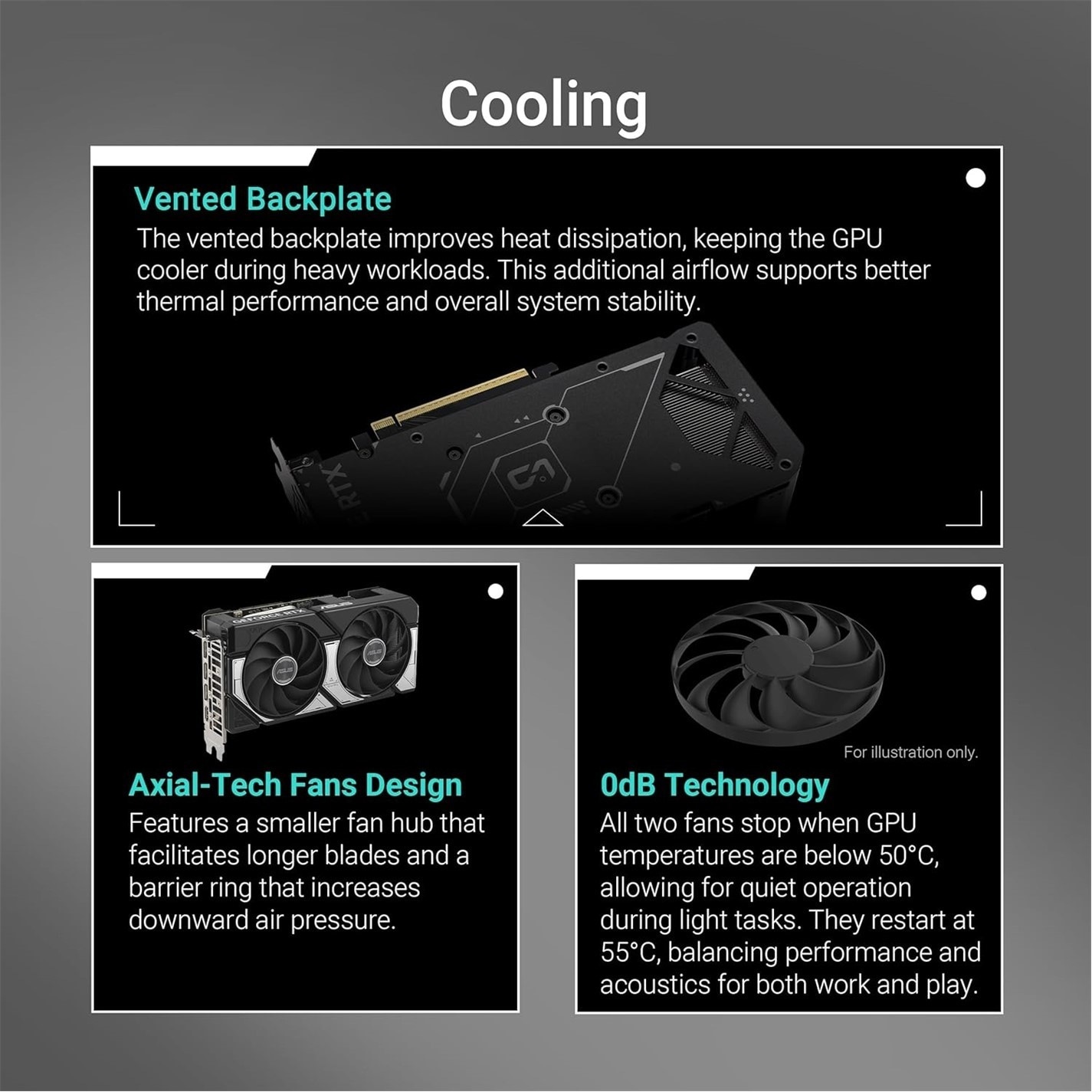

CoolingA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

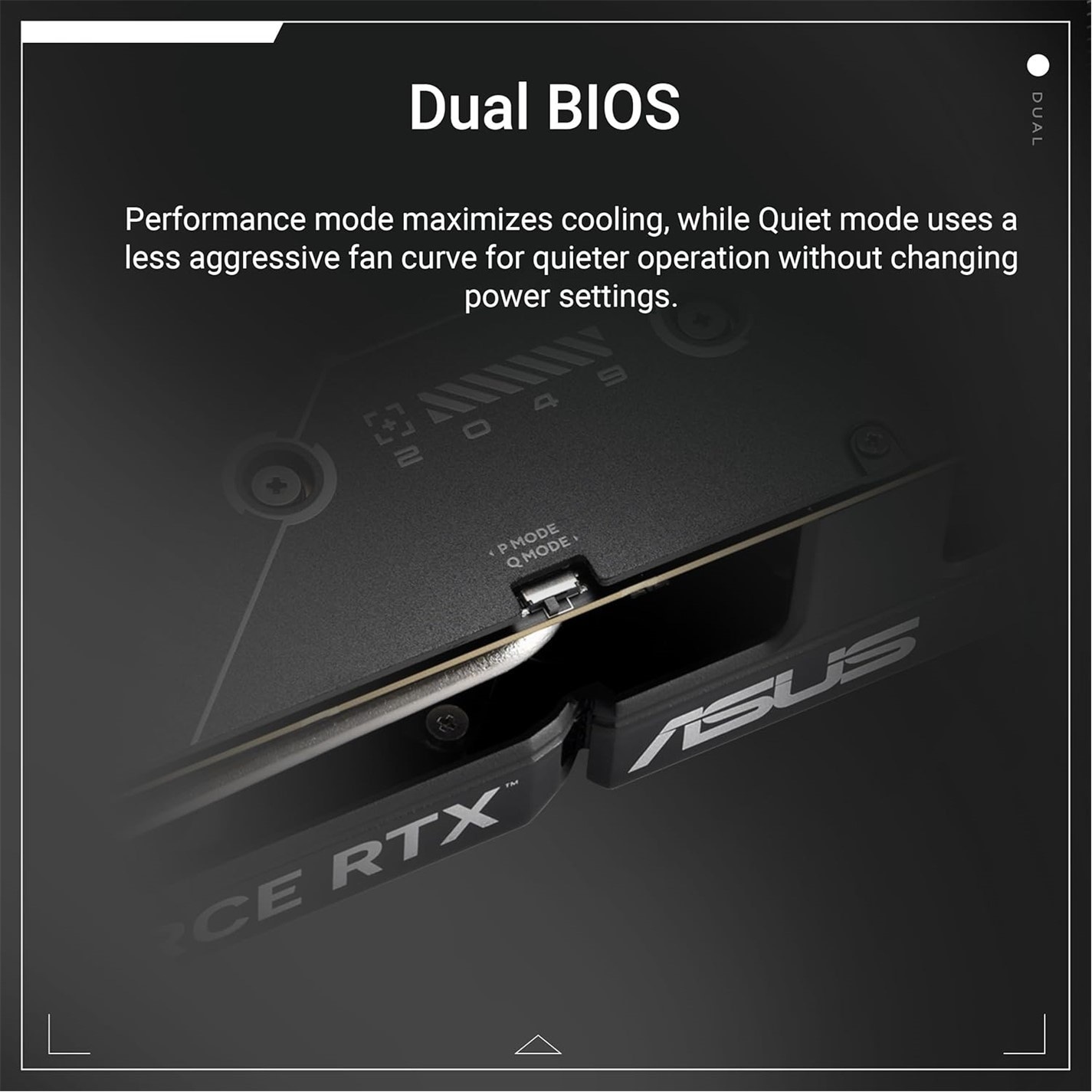

Dual BIOSDo you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
Auto-Extreme Technology Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact, . The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
Features
- Graphic Engine: NVIDIA® GeForce RTX™ 5060 Ti
- AI Performance: 759 TOPs
- Bus Standard: PCI Express 5.0
- OpenGL: OpenGL®4.6
- Video Memory: 16GB GDDR7
- Engine Clock: OC mode: 2632MHz, Default mode: 2602MHz (Boost Clock)
- CUDA Core: 4608
- Memory Speed: 28 Gbps
- Memory Interface: 128-bit
- Resolution: Digital Max Resolution 7680 x 4320
- Interface: x 1 (Native HDMI 2.1b), x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)
- Maximum Display Support: 4
- NVlink/ Crossfire Support: No
- Accessories: 1 x Speedsetup Manual, 1 x Thank You Card
- Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
- Dimensions: 229 x 120 x 50mm
- Recommended PSU: 550W
- Power Connectors: 1 x 8-pin
- Slot: 2.5 Slot
